Home / Product Clearance / Adapter Interchangeable Power Supply / 15DYS618-xyW-K / 15DYS618-090200W-K

Add to shortlist

Compare

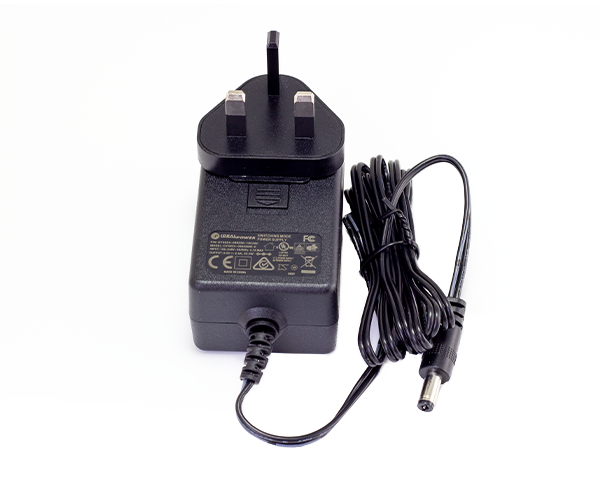

AC/DC External Adapter Interchangeable Power Supply 15DYS618-090200W-K

The DYS618-090200W-K is a Single output 9V DC 2A 18W model, and delivers dependable performance where it matters most. The 15DYS618-xyW-K Series is a versatile and reliable 18W AC/DC External Adapter Interchangeable Power Supply (PSU). Designed for use in applications such as automation and control within IT and AV systems.. This series is supplied with a Interchangeable input connection and supports input voltages of 90~264V AC 47~63Hz. Certified to UKCA, CE, TUV-GS, RCM (C-Tick), FCC, RoHS, REACH and compliant with IEC 60950-1/EN 60950-1. This product range is optimised for modern electronic designs - check out the full range. If you can’t find what you need, contact us for alternative or tailored options.

Features

Approved to UKCA, CE, TUV-GS, RCM (C-Tick), FCC, RoHS & REACH

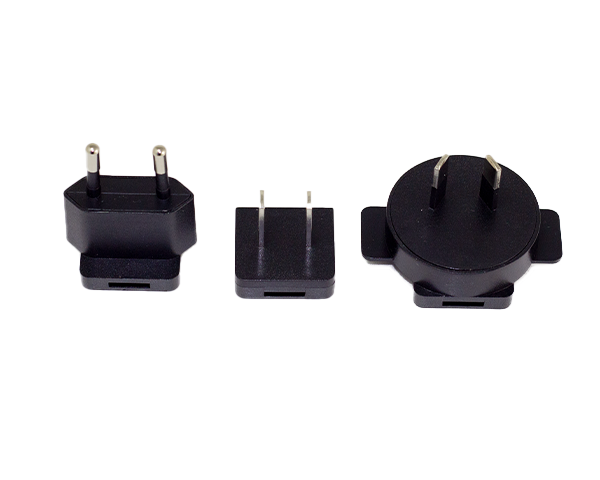

Interchangeable Plugtop Adapters
OVP, OCP, OTP, SCP
Safety standards to IEC/EN 60950-1
Single Output 9V DC
Universal Input 90~264V AC

Basic Specification

Product Type	Product Clearance Adapter Interchangeable Power Supply
Input Voltage	90~264V AC
Output	9V DC 2A
Output Power	18W
Number of Outputs	Single
Efficiency	84.0%
Output Connector	2.1 x 5.5 x 12 mm
Dimensions	76.8x47.5x35mm
Industry	ITE, Audio & Video
Standards	IEC 60950-1, EN 60950-1
