AC/DC External Adapter Plugtop Power Supply 15DYS618-090160W-3

The DYS618-090160W-3 is a Single output 9V DC 1.6A 14.4W model, and offers a steady output ideal for continuous-use systems. The 15DYS618-xyW-3 Series is a performance-focused 17.5W AC/DC External Adapter Plugtop Power Supply (PSU). Designed for use in applications such as network equipment and signal distribution hardware.. This series is supplied with a UK Fixed input connection and supports input voltages of 90~264V AC 47~63Hz. Certified to UKCA, CE, RoHS, REACH and compliant with IEC 60950-1/EN 60950-1. This product range is suited for embedded use across IT, audio and visual sectors—view related products. If you can’t find what you need, contact us for alternative or tailored options.

Features

Approved to CE, RoHS
Direct UK Fixed Plugtop Adapters
OVP, OCP, OTP, SCP
Safety standards to IEC/EN 60950-1
Single Output 5~9V DC
Universal Input 90~264V AC

Basic Specification

Product Type	Product Clearance Adapter Plugtop AC/DC Power Supply
Input Voltage	90~264V AC
Output	9V DC 1.6A
Output Power	14.4W
Number of Outputs	Single
Efficiency	84.0%

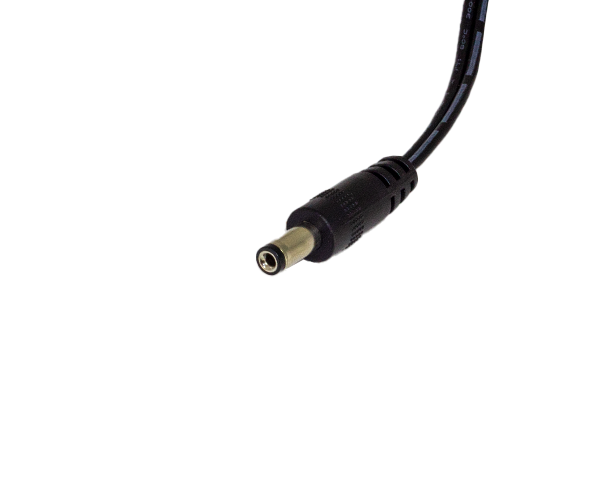

Output Connector	2.1 x 5.5 x 12 mm
Dimensions	76.8x50x59.3mm
Industry	ITE, Audio & Video
Standards	IEC 60950-1, EN 60950-1
