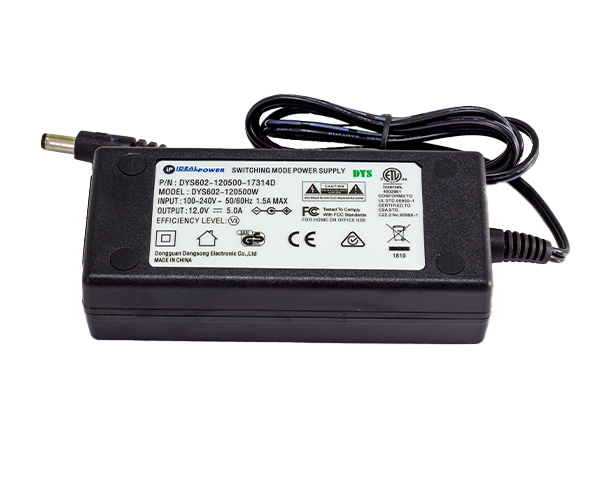

AC/DC External Desktop Power Supply 15DYS602-120500W-FX

The DYS602-120500W-FX is a Single output 12V DC 5A 60W model, and is a reliable solution for everyday power applications. The 15DYS602-xyW-FX Series is a regulated and reliable 60W AC/DC External Desktop Power Supply (PSU). Designed for use in applications such as system-critical media and control infrastructure.. This series is supplied with a IEC C8 input connection and supports input voltages of 90~264V AC 47-63Hz. Certified to UKCA, CE, cULus, TUV, RCM (C-Tick), RoHS, REACH and compliant with EN 60950-1/IEC 60950-1/UL 60950-1. This product range is ideal for system builders and engineers - get in touch for technical support. If you can’t find what you need, contact us for alternative or tailored options.

Features

Approved to UKCA, CE, cULus, RCM (C-Tick), RoHS & REACH
Class II IEC C8 Connector
DoE Level VI Efficiency
Limited Power Source (LPS)
Over Voltage & Short Circuit Protection
UL/IEC/EN 60950-1 Safety Approved
Universal Input 100~240V AC

Basic Specification

Product Type	Product Clearance Desktop Power Supply
Input Voltage	90~264V AC
Output	12V DC 5A
Output Power	60W
Number of Outputs	Single
Efficiency	88.0%
Output Connector	2.1 x 5.5 x 12 mm
Dimensions	120x52.5x32mm
Industry	ITE, Audio & Video
Standards	EN 60950-1, IEC 60950-1, UL 60950-1
