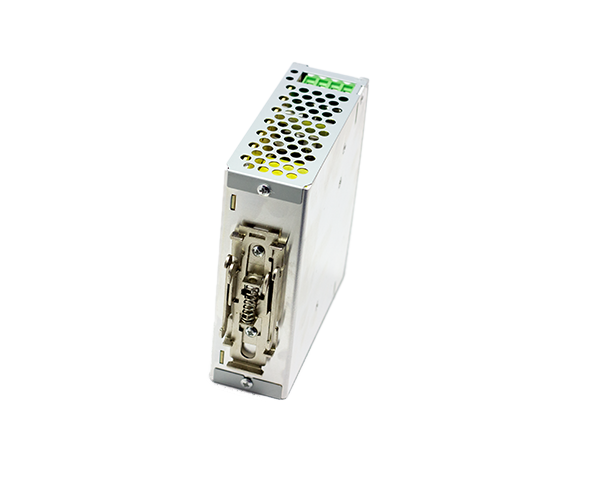

120W DIN Rail Mount AC/DC Power Supply Converter56YSDN150-xy-RS Series

The 56YSDN150-xy-RS Series is a performance-focused 120W DIN Rail Mount AC/DC Power Supply Converter. Designed for use in applications such as network equipment and signal distribution hardware.. This series is supplied with a Screw Terminal Block input connection and supports input voltages of 90~264V AC 50~60Hz. Certified to UKCA, CE, cURus, RoHS, REACH and compliant with UL 508/EN 62368-1/BS EN 62368-1. This product range is suited for embedded use across IT, audio and visual sectors—view related products. If you can’t find what you need, contact us for alternative or tailored options.

Features

DC Output Adjustable
High-Efficiency
Meets the latest Safety Standards and Approvals
Output Voltages: 12~48V DC
Protection: OLP/OVP/OTP/SCP
UL508, BS/EN 62368-1
Universal Input 90~264V AC / 127~370 V DC 50/60Hz

Basic Specification

Product Type	Internal Power Supply (PSU) DIN Rail Power Supplies
Input Voltage	90~264V AC 50~60Hz
Output Power	120W
Number of Outputs	Single
Input Connection	Screw Terminal Block
Isolation	500V DC
Dimensions	40x125x113mm
Industry	ITE, Audio & Video
Standards	UL 508, EN 62368-1, BS EN 62368-1

Pdf Spec Sheet

Models in this series

Compare Products 0/4

Compare	Model	Output Voltage	Current	Power	Additional Info
Compare	56YSDN150-12010000-RS	12V DC	10A	120W	Download Pdf
Compare	56YSDN150-24005000-RS	24V DC	5A	120W	Download Pdf
Compare	56YSDN150-48002500-RS	48V DC	2.5A	120W	Download Pdf
