Home / Internal Power Supply (PSU) / DIN Rail Power Supplies / 56YSDN480-xy / 56YSDN480-48010000

Add to shortlist

Compare

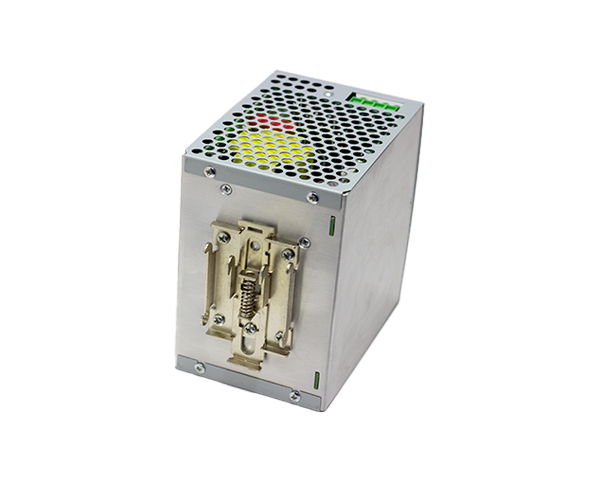

DIN Rail Mount AC/DC Power Supply Converter56YSDN480-48010000

The YSDN480-48010000 is a Single output 48V DC 10A 480W model, and delivers dependable performance where it matters most. The 56YSDN480-xy Series is a high-quality and reliable 480W DIN Rail Mount AC/DC Power Supply Converter. Designed for use in applications such as commercial, industrial and OEM electronics.. This series is supplied with a Screw Terminal Block input connection and supports input voltages of 90~264V AC 50~60Hz. Certified to UKCA, CE, cULus, RoHS, REACH and compliant with UL 508/EN 62368-1/BS EN 62368-1. This product range is widely used in development and production across the AV and computing industry. If you can’t find what you need, contact us for alternative or tailored options.

Features

DC Output Adjustable
High-Efficiency
Meets the latest Safety Standards and Approvals
Output Voltages: 24~48V DC
Protection: Overload/Over voltage/Short circuit
UL508, BS/EN 62368-1
Universal Input 90~264V AC / 127~370 V DC 50/60Hz

Basic Specification

Product Type	Internal Power Supply (PSU) DIN Rail Power Supplies
Input Voltage	90~264V AC
Output	48V DC 10A
Output Power	480W
Number of Outputs	Single
Efficiency	92.0%
Output Connector	Terminal Block
Dimensions	85.5x125x129mm
Industry	ITE, Audio & Video
Standards	UL 508, EN 62368-1, BS EN 62368-1
