Home / Internal Power Supply (PSU) / DIN Rail Power Supplies / 56YSDN150-xy / 56YSDN150-12010000

Add to shortlist

Compare

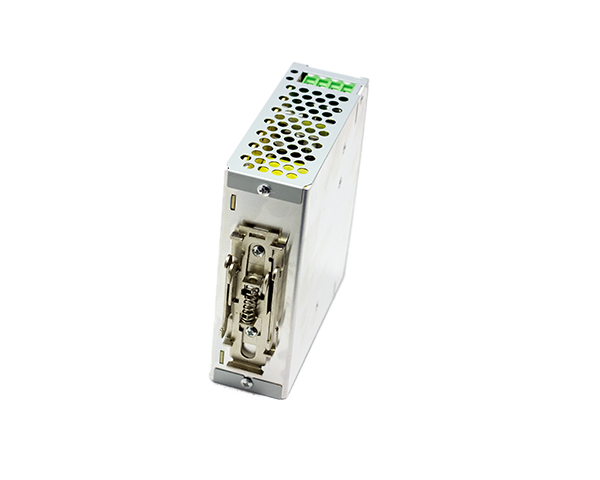

DIN Rail Mount AC/DC Power Supply Converter56YSDN150-12010000

The YSDN150-12010000 is a Single output 12V DC 10A 120W model, and offers consistent output for embedded systems. The 56YSDN150-xy Series is a high-performance 120W DIN Rail Mount AC/DC Power Supply Converter. Designed for use in applications such as digital signage, displays and user interfaces.. This series is supplied with a Screw Terminal Block input connection and supports input voltages of 90~264V AC 50~60Hz. Certified to UKCA, CE, cULus, RoHS, REACH and compliant with UL 508/EN 62368-1/BS EN 62368-1. This product range supports critical performance in multimedia and IT hardware—see full range. If you can’t find what you need, contact us for alternative or tailored options.

Features

DC Output Adjustable
High-Efficiency
Meets the latest Safety Standards and Approvals
Output Voltages: 12~48V DC
Protection: OLP/OVP/OTP/SCP
UL508, BS/EN 62368-1
Universal Input 90~264V AC / 127~370 V DC 50/60Hz

Basic Specification

Product Type	Internal Power Supply (PSU) DIN Rail Power Supplies
Input Voltage	90~264V AC
Output	12V DC 10A
Output Power	120W
Number of Outputs	Single
Efficiency	85.5%
Output Connector	Terminal Block
Dimensions	40x125x113mm
Industry	ITE, Audio & Video
Standards	UL 508, EN 62368-1, BS EN 62368-1
