50W AC/DC External Adapter Interchangeable Power Supply (PSU)15DYS850-xyW-K Series

15DYS850-xyW-K
15DYS850-xyW-K
15DYS850-xyW-K

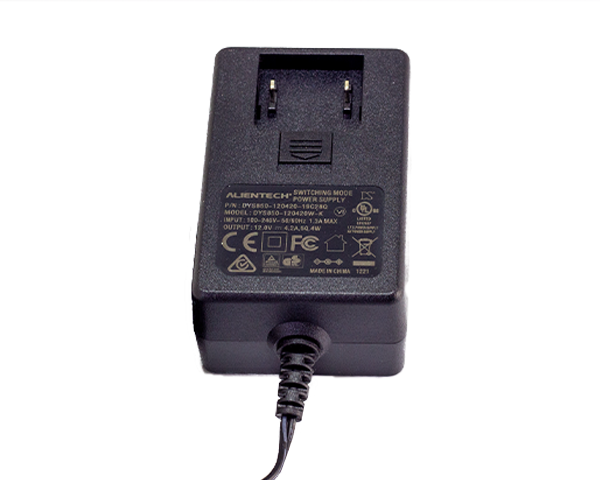

The 15DYS850-xyW-K Series is a durable and consistent 50W AC/DC External Adapter Interchangeable Power Supply (PSU). Designed for use in applications such as computing platforms and communications equipment.. This series is supplied with a Interchangeable input connection and supports input voltages of 90~264V AC 47~63Hz. Certified to UKCA, CE, cULus, TUV, RCM (C-Tick), RoHS, REACH and compliant with EN 62368-1/IEC 62368-1/UL 62368-1. This product range is widely used in OEM, industrial, and AV platforms—explore the range. If you can’t find what you need, contact us for alternative or tailored options.

Features

  • Approved to CE, TUV, cULus, RCM (C-Tick), RoHS & REACH
  • EMC Class B Certified

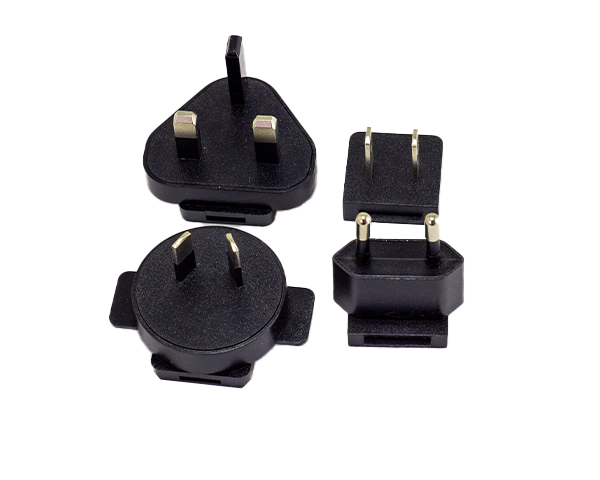

  • Interchangeable Power Supply
  • Meets Efficiency Level VI
  • OVP, OCP, OTP, SCP
  • Single Output 9~30V DC
  • UL/IEC/EN 62368-1 Safety Approved
  • Universal Input 100~240V AC

Basic Specification

Product Type External Power Supply (PSU) Adapter Interchangeable Power Supply
Input Voltage 90~264V AC 47~63Hz
Output Power 50W
Number of Outputs Single
Input Connection Interchangeable
Dimensions 84.5x52x35mm
Industry ITE, Audio & Video
Standards EN 62368-1, IEC 62368-1, UL 62368-1

Speak To The Power Supply & Conversion Experts

Get In Touch

Models in this series

Compare Model Image Output Voltage Current Power Additional Info
Compare
15DYS850-090500W-K
15DYS850-090500W-K
9V DC 5A 45W Download Pdf
Compare
15DYS850-120420W-K
15DYS850-120420W-K
12V DC 4.2A 50.4W Download Pdf
Compare
15DYS850-150336W-K
15DYS850-150336W-K
15V DC 3.36A 50.4W Download Pdf
Compare
15DYS850-180280W-K
15DYS850-180280W-K
18V DC 2.8A 50.4W Download Pdf
Compare
15DYS850-240210W-K
15DYS850-240210W-K
24V DC 2.1A 50.4W Download Pdf
Compare
15DYS850-300168W-K
15DYS850-300168W-K
30V DC 1.68A 50.4W Download Pdf
