AC/DC External Adapter Interchangeable Power Supply 15DYS818-075200W-K

15DYS818-075200W-K
15DYS818-075200W-K

The DYS818-075200W-K is a Single output 7.5V DC 2A 15W model, and provides the performance expected in trusted applications. The 15DYS818-xyW-K Series is a high-performance 18W AC/DC External Adapter Interchangeable Power Supply (PSU). Designed for use in applications such as digital signage, displays and user interfaces.. This series is supplied with a Interchangeable input connection and supports input voltages of 90~264V AC 47~63Hz. Certified to UKCA, CE, cULus, TUV, RCM (C-Tick), RoHS, REACH and compliant with EN 62368-1/IEC 62368-1. This product range supports critical performance in multimedia and IT hardware—see full range. If you can’t find what you need, contact us for alternative or tailored options.

Features

  • Approved to CE, TUV, cULus, RCM (C-Tick), RoHS & REACH
  • EMC Class B Certified
  • EN/IEC 62368-1 Safety Approved

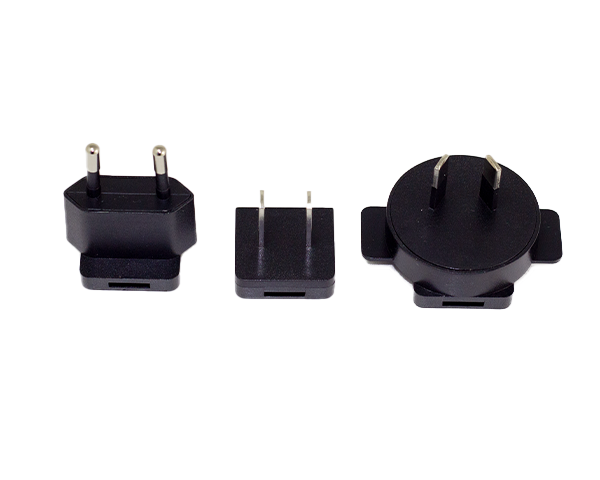

  • Interchangeable Power Supply
  • Meets Efficiency Level VI
  • OVP, OCP, OTP, SCP
  • Single Output 4.5~24V DC
  • Universal Input 100~240V AC

Basic Specification

Product Type External Power Supply (PSU) Adapter Interchangeable Power Supply
Input Voltage 90~264V AC
Output 7.5V DC 2A
Output Power 15W
Number of Outputs Single
Output Connector 2.1 x 5.5 x 12 mm
Dimensions 63.5x43.5x36.2mm
Industry ITE, Audio & Video
Standards EN 62368-1, IEC 62368-1

Speak To The Power Supply & Conversion Experts

Get In Touch

Other Models in this series

Compare Model Image Output Voltage Current Power Additional Info
Compare
15DYS818-050300W-K
15DYS818-050300W-K
5V DC 3A 15W Download Pdf
Compare
15DYS818-090200W-K
15DYS818-090200W-K
9V DC 2A 18W Download Pdf
Compare
15DYS818-120150W-K
15DYS818-120150W-K
12V DC 1.5A 18W Download Pdf
Compare
15DYS818-150120W-K
15DYS818-150120W-K
15V DC 1.2A 18W Download Pdf
Compare
15DYS818-180100W-K
15DYS818-180100W-K
18V DC 1A 18W Download Pdf
Compare
15DYS818-240075W-K
15DYS818-240075W-K
24V DC 0.75A 18W Download Pdf
Compare
15DYS818-300060W-K
15DYS818-300060W-K
30V DC 0.6A 18W Download Pdf
