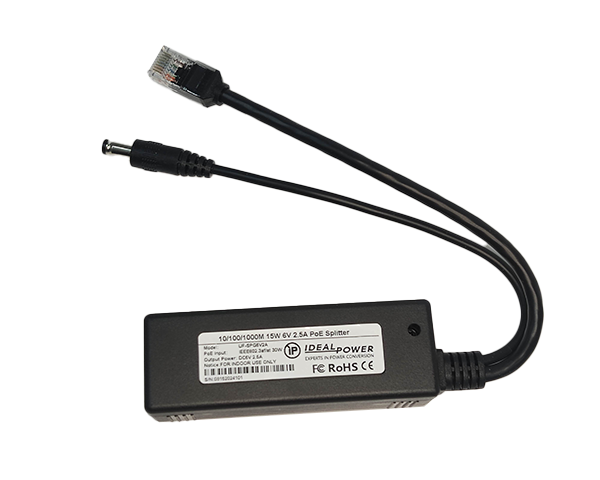

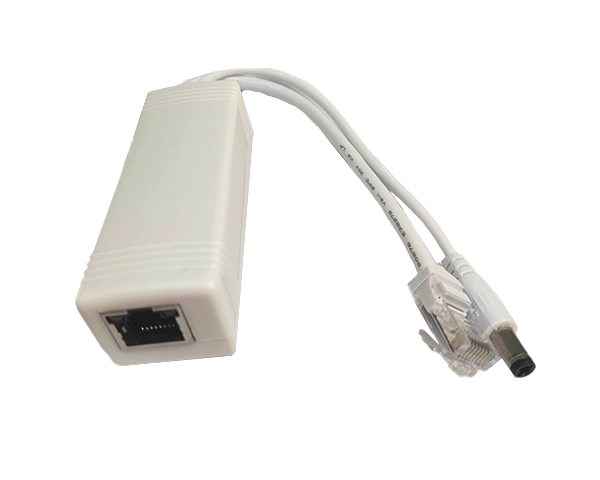

Single Port PoE Splitter08UF-SPG6V2A

The UF-SPG6V2A is a Single output 6V DC 2.5A 15W model, and offers clean, regulated power in demanding environments. The 08UF-SPG-xy Series is a versatile and reliable 24W Single Port PoE Splitter. Designed for use in applications such as automation and control within IT and AV systems.. This series is supplied with a RJ45 Port input connection and supports input voltages of 38~56V AC 47~63Hz. Certified to CE, FCC, RoHS, REACH and compliant with EN 62368-1/IEC 62368-1. This product range is optimised for modern electronic designs - check out the full range. If you can’t find what you need, contact us for alternative or tailored options.

Features

52V: MAX transmission 150M (With full copper low resistance network lines)
Built-in high-performance chip and high specification circuit board
Full bridge design, non-polarity input
Power Input: DC38~56V
RJ45 full shield port
Stable: AKrosAS1138, with lightning protection

Basic Specification

Product Type	External Power Supply (PSU) POE Splitters
Input Voltage	38~56V DC
Output	6V DC 2.5A
Output Power	15W
Number of Outputs	Single
Efficiency	84%
Output Connector	2.5 x 5.5 x 11 mm
Dimensions	250x34x26mm
Industry	ITE, Audio & Video
Standards	EN 62368-1, IEC 62368-1
