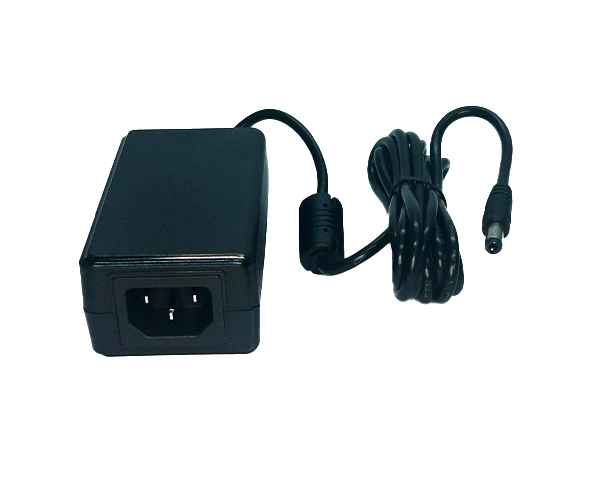

AC/DC External Desktop Power Supply 25HK-AB-050A400-D56-RSR

25HK-AB-050A400-D56-RSR
25HK-AB-050A400-D56-RSR

The HK-AB-050A400-D56-RSR is a Single output 5V DC 4A 20W model, and offers a steady output ideal for continuous-use systems. The 25HK-AB-xAz-D56-RSR Series is a performance-focused 30W AC/DC External Desktop Power Supply (PSU). Designed for use in applications such as network equipment and signal distribution hardware.. This series is supplied with a IEC C14 input connection and supports input voltages of 90~264V AC 47~63Hz. Certified to UKCA, CE, TUV-GS, cULus, RCM (C-Tick), CCC, FCC, RoHS and compliant with EN 62368-1/UL 62368-1. This product range is suited for embedded use across IT, audio and visual sectors—view related products. If you can’t find what you need, contact us for alternative or tailored options.

Features

  • Approved to UKCA, CE, TUV-GS, cULus, RCM (C-Tick), CCC, FCC & RoHS
  • EN/UL 62368-1 Safety Approved
  • Operating temperature 0~40°C
  • OVP, OCP, OTP, SCP
  • Single Output 5~24V DC
  • Universal input 90~264V DC

Basic Specification

Product Type External Power Supply (PSU) Desktop Power Supply
Input Voltage 100~240V AC
Output 5V DC 4A
Output Power 20W
Number of Outputs Single
Efficiency 83.0%
Output Connector 2.1 x 5.5 x 12 mm
Dimensions 99x52x36mm
Industry ITE, Audio & Video
Standards EN 62368-1, UL 62368-1

Speak To The Power Supply & Conversion Experts

Get In Touch

Other Models in this series

Compare Model Image Output Voltage Current Power Additional Info
Compare
25HK-AB-075A200-D56-RSR
25HK-AB-075A200-D56-RSR
7.5V DC 2A 15W Download Pdf
Compare
25HK-AB-090A250-D56-RSR
25HK-AB-090A250-D56-RSR
9V DC 2.5A 22.5W Download Pdf
Compare
25HK-AB-240A125-D56-RSR
25HK-AB-240A125-D56-RSR
24V DC 1.25A 30W Download Pdf
