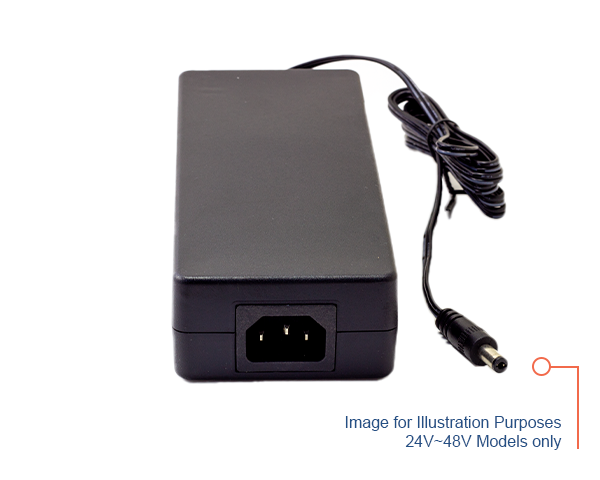

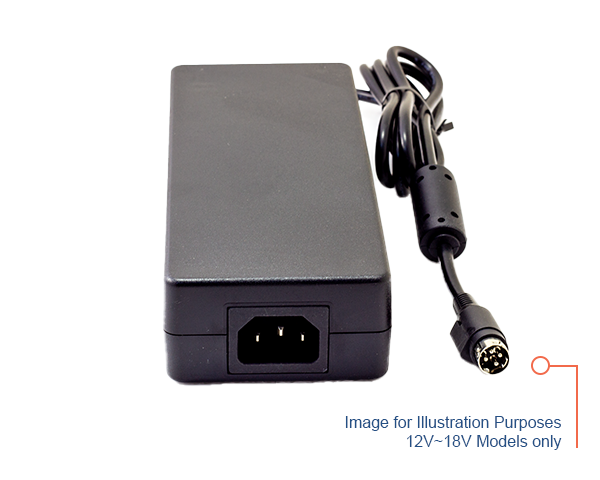

AC/DC External Desktop Power Supply 15DYS6150-3000500P-RS

15DYS6150-3000500P-RS
15DYS6150-3000500P-RS
15DYS6150-3000500P-RS

The DYS6150-3000500P-RS is a Single output 30V DC 5A 150W model, and is a reliable solution for everyday power applications. The 15DYS6150-xyP-RS Series is a high-quality and reliable 150W AC/DC External Desktop Power Supply (PSU). Designed for use in applications such as commercial, industrial and OEM electronics.. This series is supplied with a IEC C14 input connection and supports input voltages of 90~240V AC 47~63Hz. Certified to UKCA, CE, cULus, TUV, RCM (C-Tick), RoHS, REACH and compliant with EN 62368-1/IEC 62368-1/UL 62368-1. This product range is widely used in development and production across the AV and computing industry. If you can’t find what you need, contact us for alternative or tailored options.

Features

  • Approved to CE, cULus, RCM (C-Tick), RoHS & REACH
  • FCC Class B Certified
  • Meets Efficiency Level VI
  • OVP, OCP, OTP, SCP
  • Single Output 12~48V dc
  • UL/IEC/EN 62368-1 Safety Approved
  • Universal Input 90~264V AC

Basic Specification

Product Type External Power Supply (PSU) Desktop Power Supply
Input Voltage 90~264V AC
Output 30V DC 5A
Output Power 150W
Number of Outputs Single
Output Connector 2.1 x 5.5 x 12 mm
Dimensions 172.5x71x37mm
Industry ITE, Audio & Video
Standards EN 62368-1, IEC 62368-1, UL 62368-1

Speak To The Power Supply & Conversion Experts

Get In Touch

Other Models in this series

Compare Model Image Output Voltage Current Power Additional Info
Compare
15DYS6150-1201000P-RS
15DYS6150-1201000P-RS
12V DC 10A 120W Download Pdf
Compare
15DYS6150-1800770P-RS
15DYS6150-1800770P-RS
18V DC 7.7A 138.6W Download Pdf
Compare
15DYS6150-3600416P-RS
15DYS6150-3600416P-RS
36V DC 4.16A 149.8W Download Pdf
Compare
15DYS6150-2400625P-RS
15DYS6150-2400625P-RS
24V DC 6.25A 150W Download Pdf
