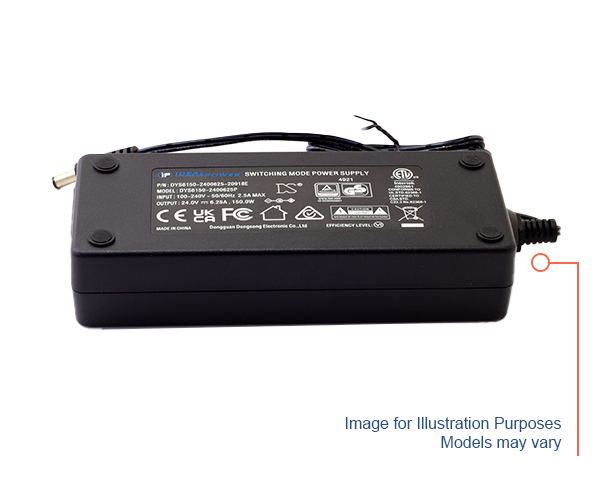

AC/DC External Desktop Power Supply 15DYS6150-2400625P-RS-2.5

The DYS6150-2400625P-RS-2.5 is a Single output 24V DC 6.25A 150W model, and provides efficient output for modern electronics. The 15DYS6150-xyP-RS-2.5 Series is a reliable and efficient 150W AC/DC External Desktop Power Supply (PSU). Designed for use in applications such as telecoms, computing and multimedia systems.. This series is supplied with a IEC C14 input connection and supports input voltages of 90~240V AC 47~63Hz. Certified to UKCA, CE, cULus, TUV, RCM (C-Tick), RoHS, REACH and compliant with EN 62368-1/IEC 62368-1/UL 62368-1. This product range is built for integration into complex electronic environments - browse compatible options. If you can’t find what you need, contact us for alternative or tailored options.

Features

Approved to CE, cULus, RCM (C-Tick), RoHS & REACH
FCC Class B Certified
Meets Efficiency Level VI
OVP, OCP, OTP, SCP
Single Output 12~48V dc
UL/IEC/EN 62368-1 Safety Approved
Universal Input 90~264V AC

Basic Specification

Product Type	External Power Supply (PSU) Desktop Power Supply
Input Voltage	90~264V AC
Output	24V DC 6.25A
Output Power	150W
Number of Outputs	Single
Output Connector	2.5 x 5.5 x 12 mm
Dimensions	173x71x37mm
Industry	ITE, Audio & Video
Standards	EN 62368-1, IEC 62368-1, UL 62368-1
