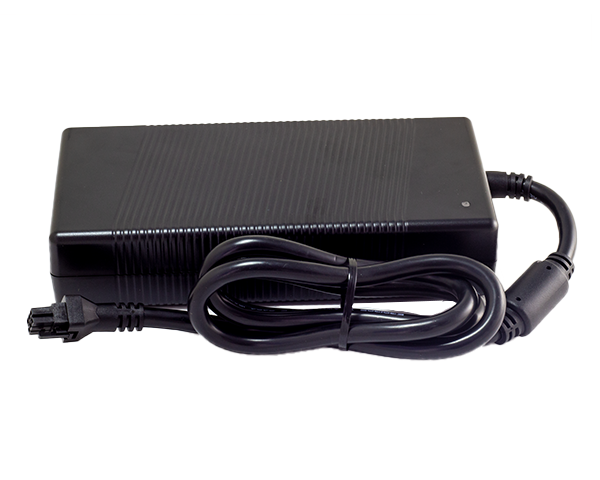

AC/DC External Desktop Medical Power Supply (PSU)44ATM250T-P240

The ATM250T-P240 is a Single output 24V DC 10.4A 249.6W model, and delivers high compatibility with OEM build specs. The 44ATM250T-Pxyz Series is a compliant and stable 250W AC/DC External Desktop Medical Power Supply (PSU). Designed for use in applications such as surgical, treatment and homecare equipment.. This series is supplied with a IEC C14 input connection and supports input voltages of 90~240V AC 47~63Hz. Certified to cULus, UKCA, CB, PSE, FCC, CE, TUV, RoHS, REACH and compliant with EN 60601-1/IEC 60601-1/ES 60601-1. This product range has been developed for healthcare systems needing uninterrupted and stable performance. If you can’t find what you need, contact us for alternative or tailored options.

Features

Approved to cULus, UKCA, CB, PSE, FCC, CE, RoHS & REACH
Earthed/Ground connected to 0V
IEC 60601-1-2:2014(ED 4.0) Safety Approved
Means of Protection: 2 X MOPP
Meets Efficiency Level VI
Single Output 12~24V DC
Universal Input 100~240V AC

Basic Specification

Product Type	External Power Supply (PSU) Desktop Power Supply
Input Voltage	90~264V AC
Output	24V DC 10.4A
Output Power	249.6W
Number of Outputs	Single
Output Connector	6 Pin Molex 39-01-2060
Dimensions	204x94x43.5mm
Industry	Medical
Standards	EN 60601-1, IEC 60601-1, ES 60601-1
