Minimum order quantities apply on all of our products Please get in touch to see how we can support you on your next Power Supply Application project.

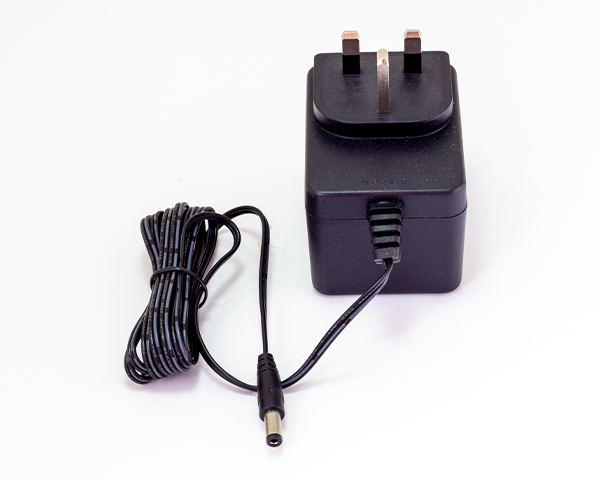

The DB-06-22 is a Single output 22V AC 0.27A W model, and delivers quality output expected from a professional-grade power supply unit. The 77DB-06-xy Series is a regulated and reliable 6VA AC/AC External Adapter UK Plugtop Power Supply (PSU). Designed for use in applications such as system-critical media and control infrastructure.. This series is supplied with a UK Fixed input connection and supports input voltages of 230~240V AC 50Hz. Certified to UKCA, CE, RoHS, REACH and compliant with BS EN 61558-2-6/BS EN 61558-1. This product range is ideal for system builders and engineers - get in touch for technical support. If you can’t find what you need, contact us for alternative or tailored options.
Product Type | External Power Supply (PSU) Adapter Plugtop AC/AC Linear Power Supply |
---|---|
Input Voltage | 230~240V AC |
Output | 22V AC 0.27A |
Number of Outputs | Single |
Output Connector | 2.5 x 5.5 x 12 mm |
Dimensions | 64x52x40mm |
Industry | ITE, Audio & Video |
Standards | BS EN 61558-2-6, BS EN 61558-1 |
Compare | Model | Image | Output Voltage | Current | Power | Additional Info |
---|---|---|---|---|---|---|
Compare |
77DB-06-06 | 6V AC | 1A | - | Download Pdf | |
Compare |
77DB-06-09 | 9V AC | 0.67A | - | Download Pdf | |
Compare |
77DB-06-12 | 12V AC | 0.5A | - | Download Pdf | |
Compare |
77DB-06-15 | 15V AC | 0.5A | - | Download Pdf | |
Compare |
77DB-06-18 | 18V AC | 0.33A | - | Download Pdf | |
Compare |
77DB-06-20 | 20V AC | 0.3A | - | Download Pdf | |
Compare |
77DB-06-24 | 24V AC | 0.25A | - | Download Pdf | |
Compare |
77DB-06-3.5 | 3.5V AC | 1.71A | - | Download Pdf | |
Compare |
77DB-06-7.5 | 7.5V AC | 0.8A | - | Download Pdf |
