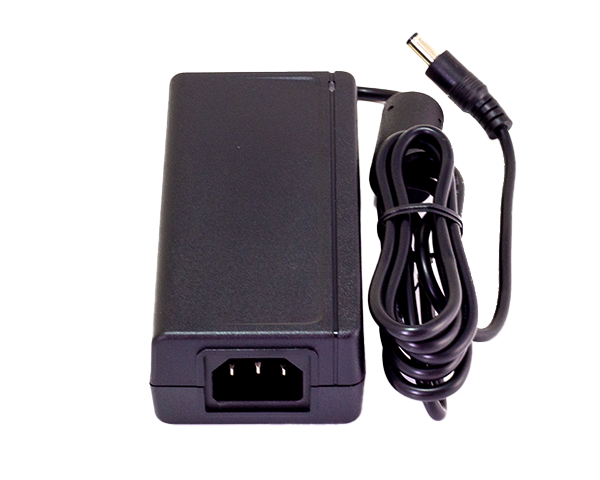

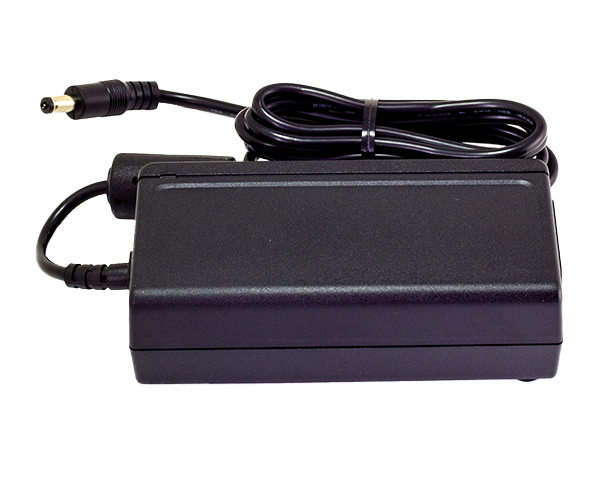

AC/DC External Desktop Medical Power Supply (PSU)44ATM065T-P180

44ATM065T-P180
44ATM065T-P180
44ATM065T-P180

The ATM065T-P180 is a Single output 18V DC 3.62A 65.16W model, and is a reliable solution for everyday power applications. The 44ATM065T-Pxyz Series is a safe and consistent, medically approved 65W AC/DC External Desktop Medical Power Supply (PSU). Designed for use in applications such as surgical, therapeutic and diagnostic machinery.. This series is supplied with a UK Fixed input connection and supports input voltages of 90~240V AC 47~63Hz. Certified to cULus, UKCA, CB, PSE, FCC, CE, TUV, RoHS, REACH and compliant with EN 60601-1/IEC 60601-1/ES 60601-1. This product range is a reliable option for engineers specifying components for patient-use applications. If you can’t find what you need, contact us for alternative or tailored options.

Features

  • Approved to cULus, UKCA, CB, PSE, FCC, CE, RoHS & REACH
  • Earthed/Ground connected to 0V
  • IEC 60601-1-2:2014(ED 4.0) Safety Approved
  • Means of Protection: 2 X MOPP
  • Meets Efficiency Level VI
  • Single Output 12~48V dc
  • Universal Input 100~240V AC

Basic Specification

Product Type External Power Supply (PSU) Desktop Power Supply
Input Voltage 90~264V AC
Output 18V DC 3.62A
Output Power 65.2W
Number of Outputs Single
Output Connector 2.1 x 5.5 x 11 mm
Dimensions 160x64x35mm
Industry Medical
Standards EN 60601-1, IEC 60601-1, ES 60601-1

Speak To The Power Supply & Conversion Experts

Get In Touch

Other Models in this series

Compare Model Image Output Voltage Current Power Additional Info
Compare
44ATM065T-P120
44ATM065T-P120
12V DC 5A 60W Download Pdf
Compare
44ATM065T-P240
44ATM065T-P240
24V DC 2.71A 65W Download Pdf
Compare
44ATM065T-P300
44ATM065T-P300
30V DC 2.17A 65.1W Download Pdf
Compare
44ATM065T-P150
44ATM065T-P150
15V DC 4.34A 65.1W Download Pdf
Compare
44ATM065T-P480
44ATM065T-P480
48V DC 1.36A 65.3W Download Pdf

Also Available From

Digikey Digikey Product Code: 2882-44ATM065T-P180-ND
Farnell Farnell Product Code: 3798168
CPC CPC Product Code: PW04997
