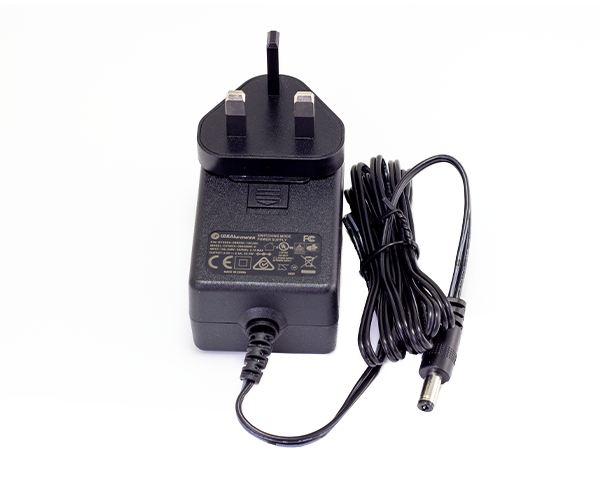

AC/DC External Adapter Interchangeable Power Supply 15DYS824-120200W-K-RS-2.5

The DYS824-120200W-K-RS-2.5 is a Single output 12V DC 2A 24W model, and provides the performance expected in trusted applications. The 15DYS824xyW-K-RS-2.5 Series is a consistent and high-performing 24W AC/DC External Adapter Interchangeable Power Supply (PSU). Designed for use in applications such as embedded electronics and control equipment.. This series is supplied with a Interchangeable input connection and supports input voltages of 90~264V AC 47~63Hz. Certified to UKCA, CE, TUV-GS, cULus, RCM (C-Tick), FCC, CCC, RoHS and compliant with EN 62368-1/IEC 62368-1/UL 62368-1. This product range has been designed to streamline your hardware development—contact us for product guidance. If you can’t find what you need, contact us for alternative or tailored options.

Features

Approved to UKCA, CE, TUV-GS, cULus, RCM (C-Tick), FCC, CCC, RoHS

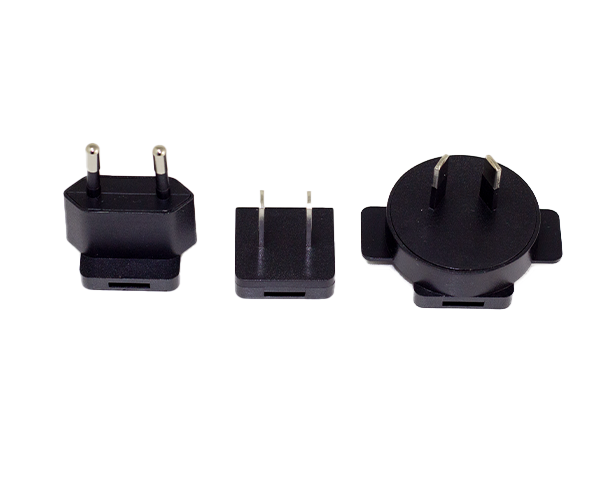

Interchangeable Power Supply
Meets Efficiency Level VI
OVP, OCP, OTP, SCP
Single Output 12~24V DC
UL/IEC/EN 62368-1 Safety Approved
Universal Input 90~264V AC

Basic Specification

Product Type	External Power Supply (PSU) Adapter Interchangeable Power Supply
Input Voltage	90~264V AC
Output	12V DC 2A
Output Power	24W
Number of Outputs	Single
Efficiency	86.2%
Output Connector	2.5 x 5.5 x 11 mm
Dimensions	77x48x35mm
Industry	ITE, Audio & Video
Standards	EN 62368-1, IEC 62368-1, UL 62368-1
