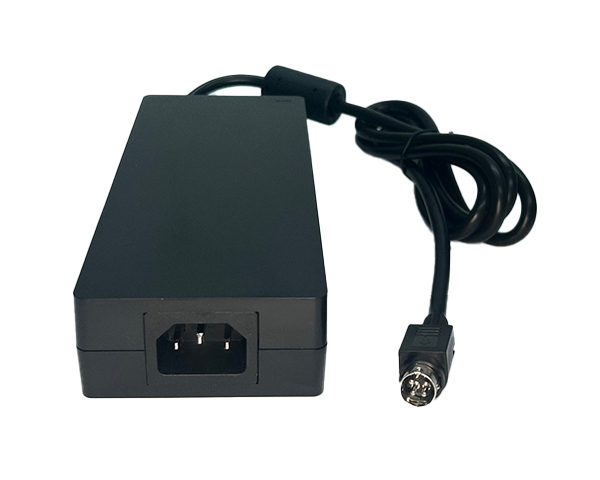

AC/DC External Desktop Power Supply 14AK240WG-1201500W1-RS

The AK240WG-1201500W1-RS is a Single output 12V DC 15A 180W model, and delivers quality output expected from a professional-grade power supply unit. The 14AK240WG-xyW1-RS Series is a performance-focused 240W AC/DC External Desktop Power Supply (PSU). Designed for use in applications such as network equipment and signal distribution hardware.. This series is supplied with a IEC C14 input connection and supports input voltages of 90~264V AC 47~63Hz. Certified to UKCA, CE, TUV-GS, cULus, RCM (C-Tick), FCC, RoHS and compliant with EN 62368-1/UL 62368-1. This product range is suited for embedded use across IT, audio and visual sectors—view related products. If you can’t find what you need, contact us for alternative or tailored options.

Features

Approved to UKCA, CE, cULus, RCM (C-Tick), CCC, FCC, PSE, RoHS
Operating temperature 0~40°C
OVP, OCP, OTP, SCP
Single Output 12~48V dc
UL 62368-1 Safety Approved
Universal input 90~264V DC

Basic Specification

Product Type	External Power Supply (PSU) Desktop Power Supply
Input Voltage	90~264V AC
Output	12V DC 15A
Output Power	180W
Number of Outputs	Single
Efficiency	88.0%
Output Connector	4 Pin
Dimensions	200x88.5x40mm
Industry	ITE, Audio & Video
Standards	EN 62368-1, UL 62368-1
