Home / Battery Chargers / Lead Acid / 31AC1024-RS

Compare

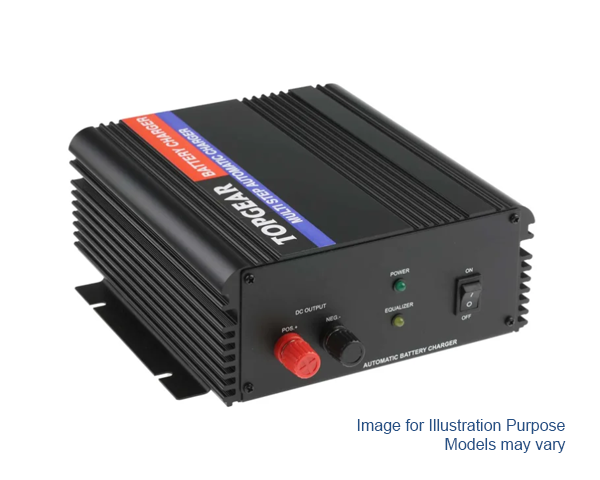

24V Lead Acid Battery Chargers31AC1024-RS Series

The 31AC1024-RS Series is a performance-focused 24V Lead Acid Battery Chargers. Designed for use in applications such as network equipment and signal distribution hardware.. This series is supplied with a IEC C14 input connection and supports input voltages of 195~264V AC 47~63Hz. Certified to UKCA, CE, RoHS and compliant with EN 60950-1. This product range is suited for embedded use across IT, audio and visual sectors—view related products. If you can’t find what you need, contact us for alternative or tailored options.

Features

12~48V Lead Acid 3 Stage Control (Fast/Normal/Float)
Approved to UKCA, CE, RoHS
Input Range 115~230V AC
LED Charge Indicators Included
LVD & EMC Class B Certified, RoHS & REACH compliant
OVP, OCP, OTP, SCP
Short Circuit Output Protected

Basic Specification

Product Type	Battery Chargers Lead Acid
Input Voltage	195~264V AC 47~63Hz
Output Power	240W
Number of Outputs	Single

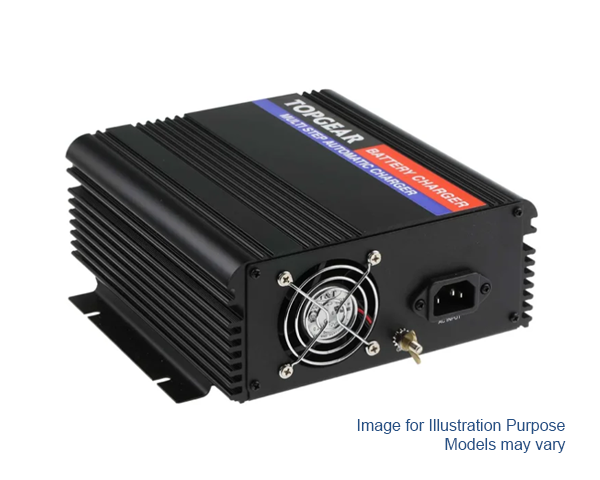

Input Connection	IEC C14
Dimensions	238.4x204x85mm
Industry	ITE, Audio & Video
Standards	EN 60950-1
